Electrical
The current idea for the electrical system is as follows:
- 5000W inverter, multiplus-II GX: https://www.nkon.nl/victron-energy-multiplus-ii-5000-48v-110a-70-50-gx.html ~ 1000
- Gerbo display for mounting in an accessible place for control. (5"?) https://www.nkon.nl/victron-energy-gx-touch-50.html ~ 200
- Multiple (3x) solar panel inverters for 4 solar panels each (3x ~1600w ) for a total of ~4800W Folding out from the roof in a 4-panel configuration of 3 layers total, https://www.groothandelsolar.com/zonnepanelen-kopen/jinko/jkm435n-54hl4r-bk-435wp-Glas-Glas-n-type-full-black ~ 1000
- 4x Tesla 6.4kWh module (24kWh effective) https://evshop.eu/en/batteries/147-64kwh-tesla-module-6s86p.html ~ 6200
- All to be mounted under the seating area, as compact as possible (heat should not be much of a problem). If heat is a problem, we'll make sure ventilation holes and a thermostat controlled fan..
- Can use 1x Victron MPPT solar modules for charging: https://www.nkon.nl/victron-energy-scc125070221-smartsolar-mppt-250-70-tr-solar-laadregelaar.html ~600
- 4kw through-flow heater (single phase, 4.4kw): https://electraboiler.nl/products/copy-of-vaillant-doorstroom-boiler-vermogen-3-kw for shower/kitchen_sink ~300
- Floor heating (electrical, 1800W) as a secondary system: https://www.vloerverwarmingstore.nl/p/verwarming-folie-aanvulset-10-m-1200-watt-aanvulset-2 ~500
- Ikea 2-hob induction cooker. ~250
- The home-automation system uses Luxone https://www.blissmobil.com/2020/08/18/loxone-smart-home-system/
That's ~1800 - Need a way to make sure I don't switch on multiple systems of high load (1200+4400>5000). But the problem is, it could be switched on by turning the tap on.. :-/ Make a switch for 'hot water' that does not switch on the rest of the things when hot water is on. So you have to flip the switch for hot water first (shower and kitchen) that then switches off the heating and other high-wattage sources.

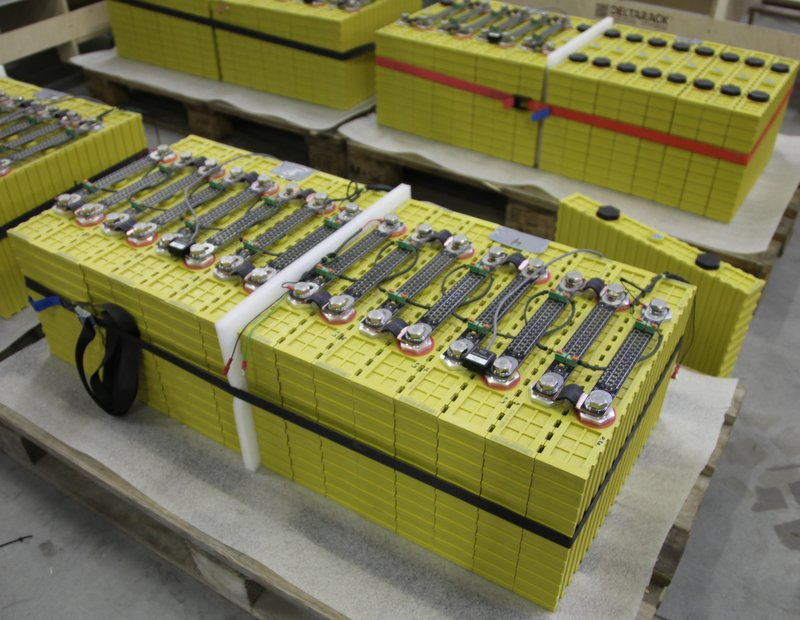

Blissmobile uses https://emusbms.com/product-category/cell_modules/ (from this picture):
